Description
MPD Edit is a powerful suite of tools and macros designed to simplify and speed up design in Tekla Structures. These user-friendly and intuitive utilities can reduce design time by up to 30%.
MPD Edit makes design easier and more comfortable, optimizing every stage of the workflow. Enhanced functionality allows users to focus on key tasks, minimizing repetitive operations.
The package includes over 20 tools that simplify design in Tekla Structures, providing full control and confidence at every step. Engineers around the world use MPD Edit daily to boost productivity and achieve better results.

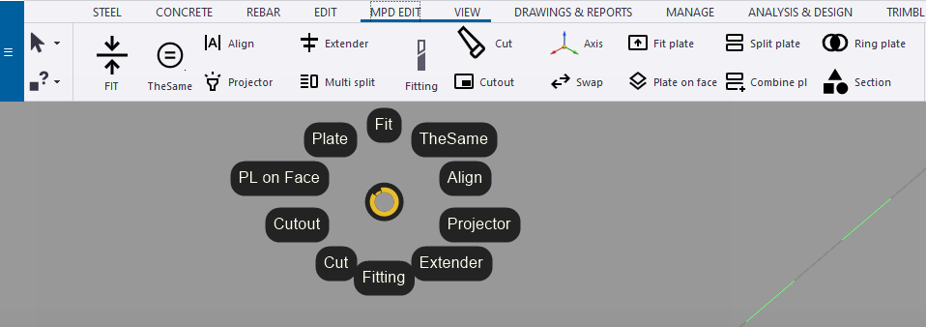

Utilities are integrated into the Tekla Structures ribbon, with a context menu AutoHotPie also available for quick access.
Main Commands:
- Fit: Extending or shortening model objects to a specified plane (part face) or line.
- The Same: Creating a new model object identical to the selected one.
- Align: Aligning model objects to a specified plane (part face).
- Projector: Copying or moving model objects to a specified plane.
- Extender: Shortening or splitting beams using other beams.
- Multi Split: Group splitting of model objects using a plane, line, or point.
- Fitting: Creating a fitting along a plane (part face) or line.
- Cut: Creating a cut along a plane (part face) or line.
- Cutout: Creating cutouts in a part using other parts. The cutout is created with specified offsets based on a polygon.
- Axis: Local axes of the model object.
- Swap: Reversing the coordinate system of the object (swapping the start and end points).
- Fit Plate: Extending or shortening a plate to a specified plane (part face) with additional geometry settings.
- Plate on Face: Creating a contour plate on the face of an object, with the possibility of smoothing the plate contour along a circle or ellipse, and setting offsets.
- Split Plate: Splitting a plate along a line or point.
- Combine Plate: Merging adjacent plates.
- Ring Plate: Creating or modifying plates along the contour of a beam, convenient for ring plates. Smoothing the plate contour along a circle or ellipse.
- Section: Creating a section of the plate or part contour when intersected by a plane. The section is created as a polyline.

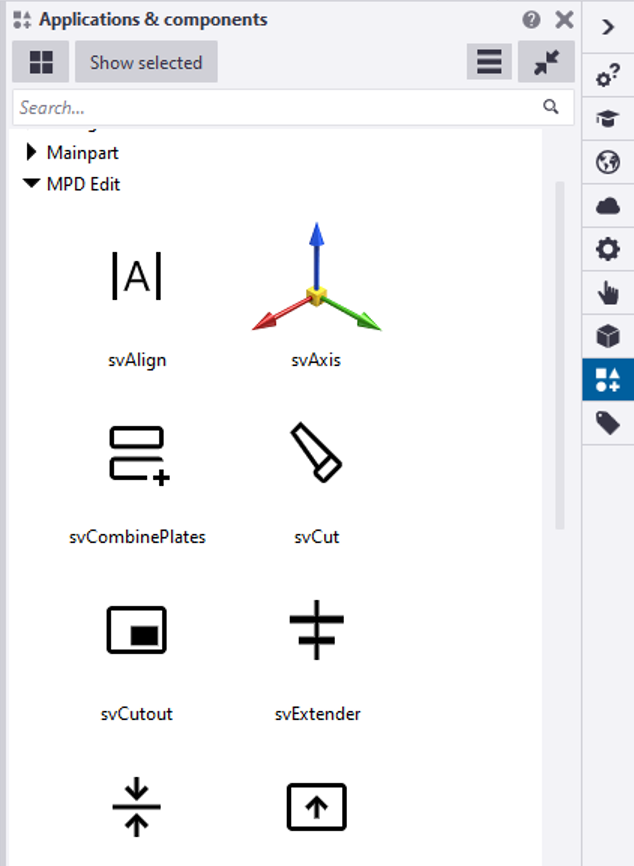

These and other MPD EDIT plugins and macros are also available in the components tree of the Application & Components panel.
